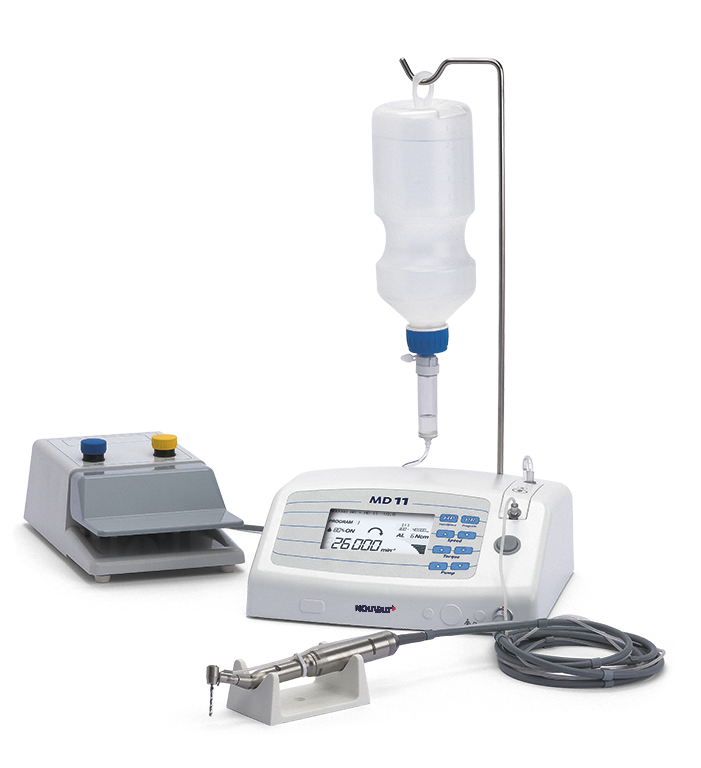

Motor System MD 11
Implantology Device
A motor system that perfectly supports you in every oral implantology procedure.
Sophisticated motor for smooth, controlled and precise power output in any speed range.
Technical Description
A clearly arranged and sophisticated control unit to connect an implantology handpiece with speed and torque control.
• 4 programs for drilling, cutting threads, screwing in the implant and placing the cover screw.
• Motor speed range of 300 - 40‘000 rpm.
• Integrated pump system for cooling the instrument to prevent tissue damage.
• 70 Ncm of maximum torque with the 20:1 contra angle and graphical, real time torque control
• Sturdy, high quality design and finishing
• Handpiece 1:1 and contra angles 16:1, 20:1, 20:1 LED, 32:1 are available

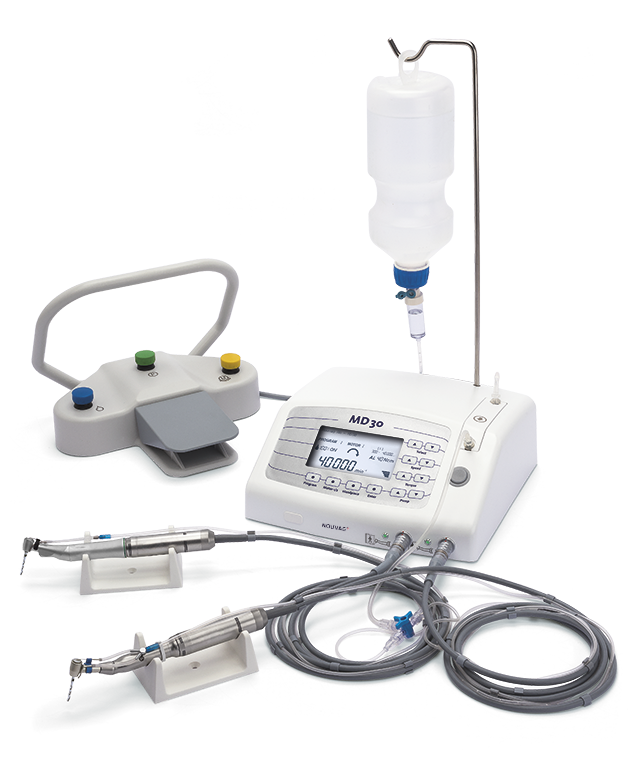

Motor System MD 30
Oral Surgery Device
A motor system specially developed for all operations in oral surgery and implantology. The sophisticated engine drive ensures a smooth and precise power transmission in every speed range.
Technical Description
A device consisting of a control unit to which a surgical handpiece such as a contra-angle handpiece or saw and an implatology handpiece can be connected simultaneously to perform complete oral surgical procedures.
- Motor speed range of 300 - 50‘000 rpm.
- Integrated pump system for cooling the instrument to avoid tissue damage.
- 70 Ncm of maximum torque with the 20:1 contra angle and graphical, real time torque control.
- Sturdy, high quality design and finish.
- Fix settings for 12 different handpieces. Configuration menu to customize device after your favour.
